Ball Valve Series
Description

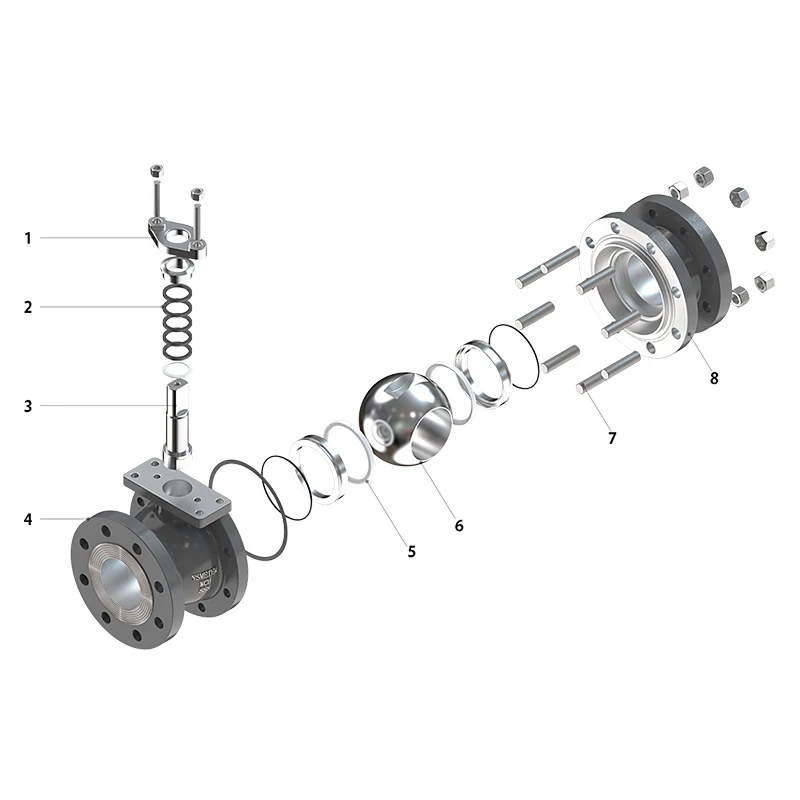

The ZSHO/ZDRO series O-type shut-off ball valve adopts a two-piece structure for small diameters and an optional three-piece structure for large diameters. The valve body consists of main and secondary bodies. The ball adopts a full-bore design with a high rated flow coefficient and low flow resistance.
Share:
Fire-safe and anti-static design.
Anti-blow-out valve stem design.
Pressure balance hole on the ball.
Double-layer valve stem packing with opposed Belleville spring arrangement.
The plug of a ball valve is a spherical element with a circular through-hole along its axis. When the ball rotates 90 degrees, its spherical surface covers the inlet and outlet ports, thus shutting off the flow. When rotated back, the through-hole aligns to allow medium passage. The inner cavity of the ball provides a low-flow-resistance, full-port flow channel for the medium.
|
DN (mm) |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
|
Rated Flow Coefficient Kv |
20 |
38 |
72 |
110 |
170 |
270 |
380 |
510 |
940 |
|
DN (mm) |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
|
Rated Flow Coefficient Kv |
1400 |
2200 |
3500 |
5000 |
8500 |
11000 |
13500 |
17000 |
20500 |
|
PN |
1.6~10.0MPa 、150lb~600lb |
||||||||
|
Inherent Flow Characteristic |
Quick opening |
||||||||
|
Rated Angle（°） |
0±4°～90±4° |
||||||||
|
Allowable Leakage Class |
Class Ⅵ, Leak-free |
||||||||
|
Air Supply Pressure Ps（MPa） |
0.4～0.6 |
||||||||
|
Power Supply |
220V.AC 50Hz or 380V.AC 50Hz |
||||||||
|
Flange Connection Type |
PN1.6MPa as per HG/T20592-2009 RF, with body of raised face PN≥4.0MPa as per HG/T20592-2009 FM, with body of female face |
||||||||
