Ball Valve Series
Description

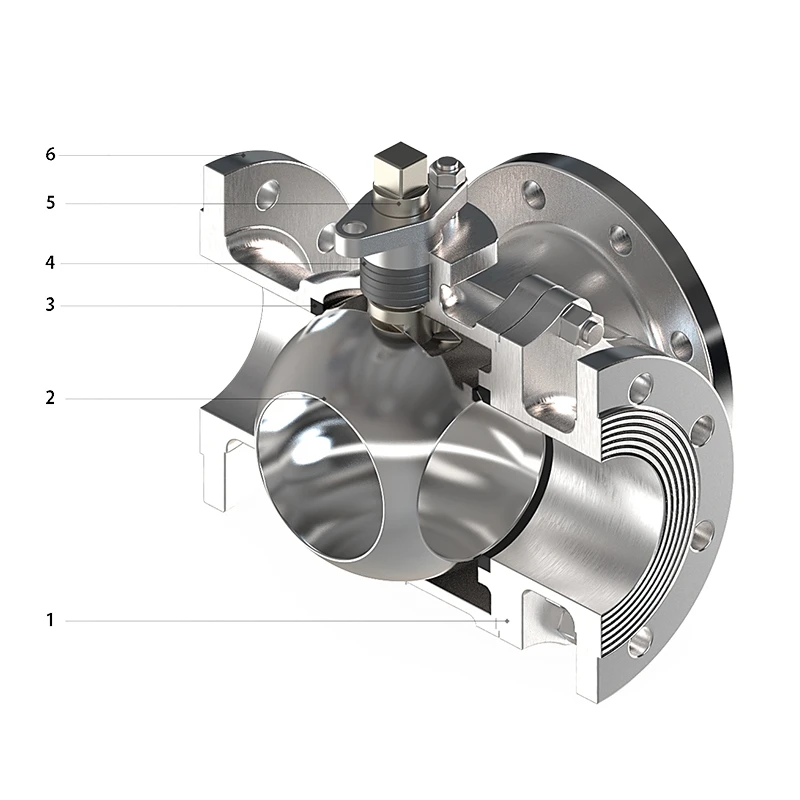

The L-type three-way shut-off ball valve adopts a two-piece ball valve structure, while the T-type three-way shut-off ball valve adopts a one-piece structure. It is mainly used for shut-off, distributing, and changing the flow direction of the medium in pipelines.
Share:
High pressure resistance with excellent sealing performance.
Low flow resistance loss in the chamber, compact and attractive appearance.
Suitable for pipelines conveying liquids and gases.
Three-way ball valves are available in L-port and T-port designs, mainly used for the flow control and shut-off of gas / oil in pipelines. They feature cast or forged valve bodies, with inserted downstream seats and carburized hardened valve stems. Depending on material selection, the valves can meet the requirements of unidirectional or bidirectional sealing.
|
DN (mm) |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
|
Rated Flow Coefficient Kv |
20 |
38 |
72 |
110 |
170 |
270 |
380 |
|
DN (mm) |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
|
Rated Flow Coefficient Kv |
510 |
940 |
1400 |
2200 |
3500 |
5000 |
8500 |
|
PN |
1.6~4.0MPa 、150lb~300lb |
||||||
|
Inherent Flow Characteristic |
Quick opening |
||||||
|
Rated Angle（°） |
0±4°～90±4° |
||||||
|
Allowable Leakage Class |
Class Ⅵ, Leak-free |
||||||
|
Air Supply Pressure Ps（MPa） |
0.4～0.6 |
||||||
|
Valve Design Standard |
ASME B16.34、GB/T 12237 |
||||||
|
Face To Face Dimension Standard |
ASME B16.10、GB/T 12221 |
||||||
|
Flange Connection Standard |
ASME B16.5、ASME B16.47、HG/T 20592、HG/T 20615 |
||||||
|
Inspection and Testing Standard |
API598、GB/T 26480 |
||||||
|
Fire Resistance Test Standard |
API607、JB/T 6899 |
||||||
|
Drive Mode |
Pneumatic/Electric |
||||||
