Control Valve
Description

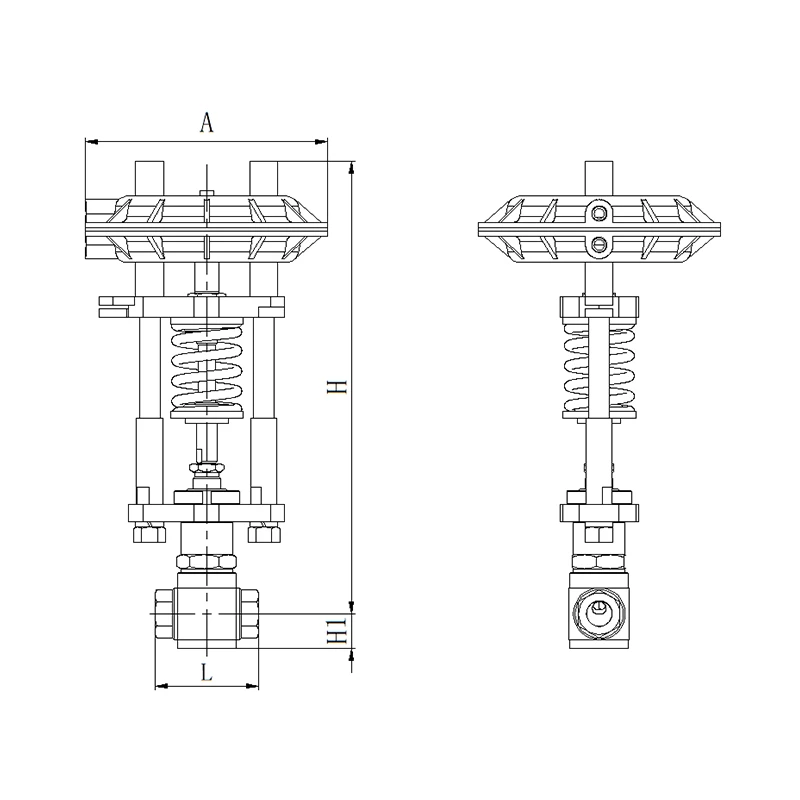

The YSIQ(D)10S series micro-flow control valve is a small-sized valve developed by our company for laboratories and research institutes, characterized by its lightweight and compact structure.
Share:
Specially designed for small flow regulation.
Adopts modular design with strong universality and interchangeability, compact in structure.
Valve plug features top-guided structure, ensuring excellent guidance, stable and reliable operation.
Connection types can be welded, threaded, etc.
The YSIQ(D)10S series micro-flow control valve can be equipped with a valve positioner to achieve precise automation control. This series of valves is especially suitable for various experimental devices in the chemical and nuclear power industries, as well as for dropwise catalytic units, meeting the need for small-sized valves in experimental setups.
|
Nominal Diameter |
DN6~25 (1/4''～1'') |
|
Nominal Pressure |
PN16~420 (150lb~2500lb) |
|
Connection Type |
1/4NPT 3/8NPT 1/2NPT 3/4NPT 1NPT |
|
Inherent Flow Characteristic |
Linear |
|
Inherent Rangeability |
50﹕1 |
|
Rated Travel |
10mm |
|
Bonnet Type |
Standard: -20~+230℃ |
|
Cooling Fin Type: -45~ -20℃ or above 230℃ (Note the pressure-temperature rating of selected materials) |
|
|
Bellows Seal Type: ≤350℃ |
|
|
Cryogenic Extended Type: -45～-100℃、-100～-200 |
|
|
Seat Leakage Rate |
Class VI |
