Control Valve
Description
The valve features a modular design with strong universality and interchangeability, offering a compact structure. Its conventional top-guided design, coupled with an optional bottom-guided structure below the seat, is suitable for various high-stability and high-differential pressure applications, meeting user requirements.
Share:
Prevents adhesion, coking and clogging, with certain self-cleaning capability.
Smooth body flow passage, low resistance and high flow capacity.
Suitable for controlling media containing suspended solids, particulate matter or high-viscosity fluids.
The valve seat, which can be used on both sides, and body are connected by a compression-type connection, which effectively enhances the sealing class and stability of the valve, while also making maintenance and use extremely convenient, significantly improving the overall performance of the control valve.
|
Type |

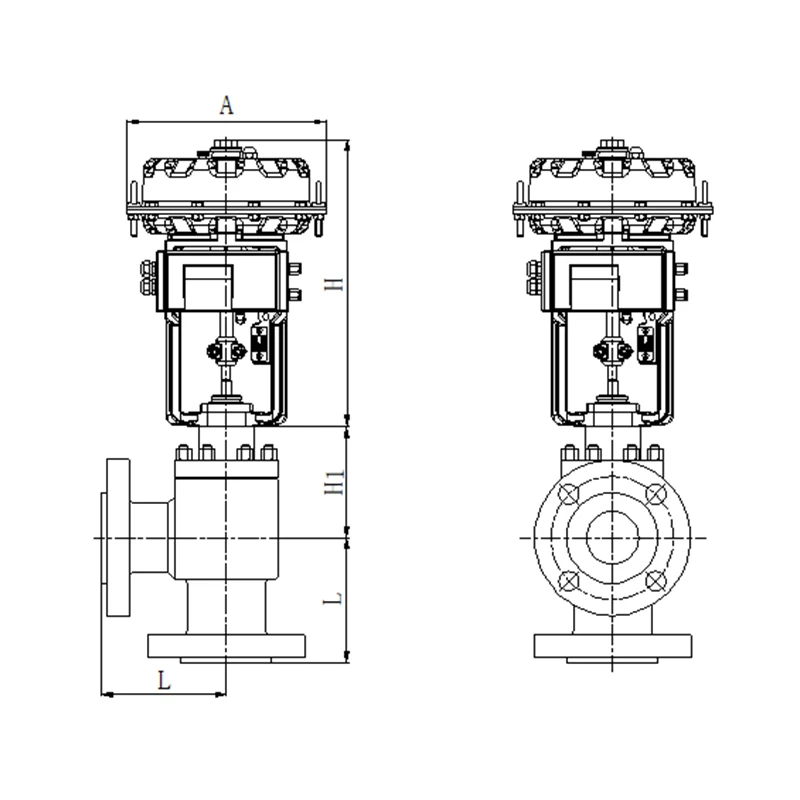

Non-High Pressure Angle Type Control Valve |
|
Nominal Diameter |
DN15～DN250（1/2”～10”） |
|
Nominal Pressure |
PN16、25、40、64、100（150lb、300lb、600lb） |
|
Inherent Flow Characteristic |
Equal Percentage, Linear |
|
Inherent Rangeability |
50﹕1 |
|
Upper Bonnet Type |
Standard Type: Cast Steel: -20 ~ +230°C, Cast Stainless Steel: -40 ~ +230°C |
|
Cooling Fin Type: -45 ~ -10°C or above 230°C (Note the pressure-temperature rating of selected materials) |
|
|
Bellows Seal Type: ≤350°C |
|
|
Cryogenic Type: -100 ~ -45°C, -200 ~ -100°C |
|
|
Seat Leakage Class |
Class IV, V, VI (Soft Sealed) |
Send Us Your Project Requirements
And We'll Match You With The Best Product Solution.
YSM high-performance regulating valves, with a wide range of structural valve internals that cover various operating conditions in a one-stop solution, provide long-term stable and reliable operation, ensuring precise regulation and efficient operation of the system.
