Self-Operated Valve Series
Description

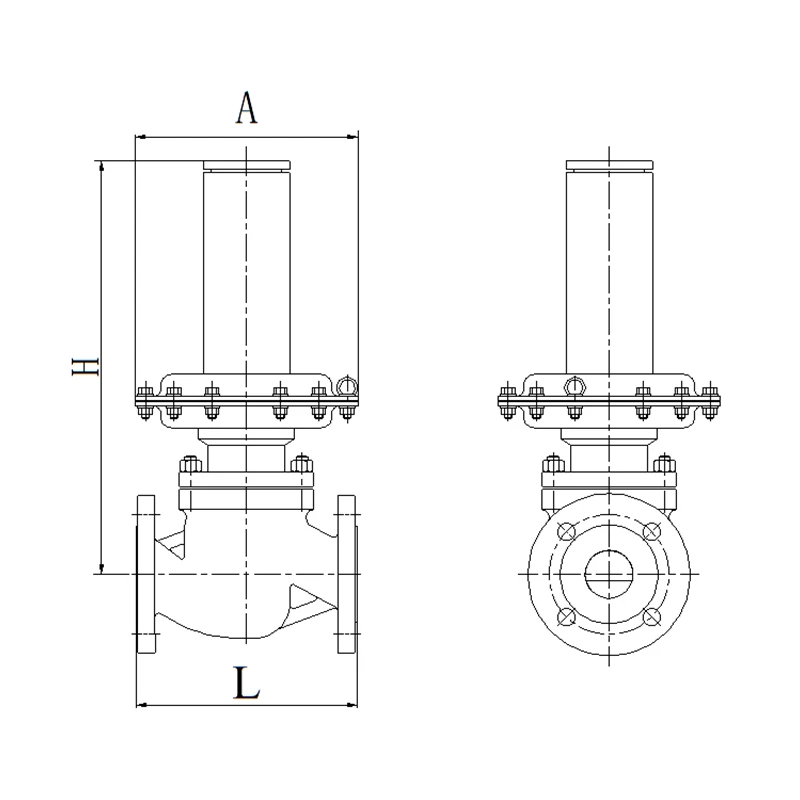

The ZZVP series self-operated micro-pressure control valve is an actuator product that requires no external energy source, relying on the energy of the controlled medium itself to achieve automatic regulation. This product features a balanced single-seat valve with a quick-opening flow characteristic adjustment mechanism, providing stable medium pressure, high regulation accuracy, and reliable sealing performance. It allows adjustment of the setpoint at any time during operation.
Share:
No external driving energy required, simple structure.
Adjustable set point with a wide range.
Balanced structure ensures stable pressure.
Low friction, high sensitivity and high regulation accuracy.
It is applicable for scenarios such as automatic micro-pressure regulation of fuel gas in various industrial furnace combustion systems, protective gas for petroleum intermediates or oil storage tanks, and protective gas for heat treatment processes.
1、Main Technical Parameters of ZZV Standard Type Table 1
|
in (DN) |
1/2” （15） |
3/4” (20) |
1” (25) |
1 1/4” (32) |
1 1/2” (40) |
2” (50) |
2 1/2” (65) |
3” (80) |
4” (100) |
5” (125) |
6” (150) |
|
Rated Flow Coefficient Kv |
2.5 |
4 |
6 |
8 |
18 |
30 |
45 |
70 |
120 |
200 |
320 |
|
Rated Travel L(mm) |
10 |
20 |
30 |
||||||||
|
Actuator Type |
Diaphragm Type: 600、200、100cm2 (The actuator size would be selected based on pressure) |
||||||||||
|
PN (MPa) |
1.0、1.6、CL150 |
||||||||||
|
Inherent Flow Characteristic |
Quick Opening |
||||||||||
|
Action Mode |
Pressure to Close (Control Downstream), Pressure to Open (Control Upstream) |
||||||||||
|
Valve Structure Type |
Single-Seat Pressure Balanced Type |
||||||||||
|
Inherent Rangeability |
30 |
||||||||||
|
Regulation Accuracy (%) |
±5 |
||||||||||
|
Medium Temperature (℃) |
Gas < 120℃ |
||||||||||
|
Allowable Leakage |
VI, Zero Leakage (Soft Seal) |
||||||||||
|
Flange Connection Type |
PN1.6MPa as per HG/T20592-2009 RF, with the body being Raised Face |
||||||||||
|
Pressure Control Range (KPa) |
0.3～3、0.5～5、4～12、10～30 20～60、40～80、60～100 |
||||||||||
2、Main Technical Parameters of ZZV Standard Type KV≤4 Table 2
|
DN(mm) |
15 20 25 |
|||||||
|
Seat Diameter dn(mm) |
20 |
|||||||
|
Rated Flow Coefficient Kv |
0.2 |
0.32 |
0.5 |
0.8 |
1.2 |
1.6 |
2.5 |
4 |
Send Us Your Project Requirements
And We'll Match You With The Best Product Solution.
YSM high-performance regulating valves, with a wide range of structural valve internals that cover various operating conditions in a one-stop solution, provide long-term stable and reliable operation, ensuring precise regulation and efficient operation of the system.
RELATED PRODUCTS
Security is not only the future value of YSMETER, but also the core interest that YSMETER brings to customers
ZZYP Self-Operated Pressure Control Valve
The ZZYP series self-operated pressure control valve is an actuator product that requires no external power source
View More

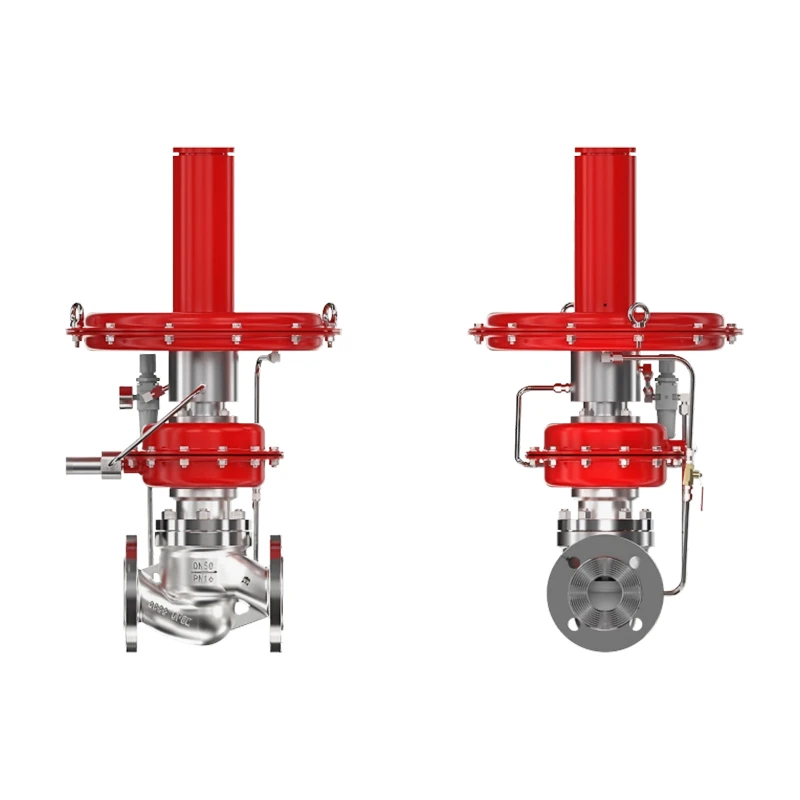

ZZYP-Ⅱ Self-Operated Pressure Control Valve with Pilot
