Special Valve Series
Description

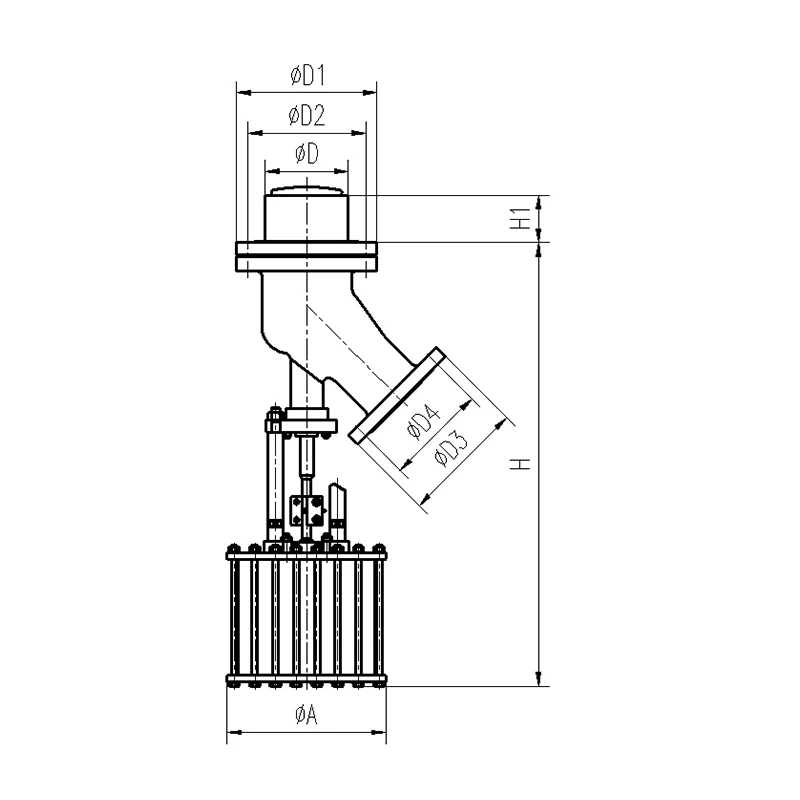

The ZMQF/ZSQF series pneumatic bottom valves adopt an integrated direct-flow structure. The valve body has a streamlined, obstruction-free flow path, with the inner surface of the flow path treated with sandblasting for a smooth, wear-resistant finish that minimizes flow resistance and eliminates dead spots.
Share:
Vertical installation to minimize interference zones.
Smooth fluid flow channel with low flow resistance.
Capable of extending into the reactor to reduce material accumulation areas.
The upward-spreading type bottom valve relies on medium-assisted sealing for excellent sealing performance.
The soft seal ensures zero leakage, while the metal seal is made of overlaying STL alloy, making it suitable for high-temperature and solid particle-laden medium in harsh conditions. For food-grade medium, the inner surface is coated with Teflon, offering excellent corrosion resistance and meeting sanitary standards.
|
Pipe Diameter (mm) |
25 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
|
|
Bottom Diameter (mm) |
25 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
|
|
40 |
80 |
100 |
100 |
125 |
150 |
200 |
250 |
300 |
||
|
50 |
100 |
125 |
125 |
150 |
200 |
/ |
/ |
/ |
||
|
Rated Flow Coefficient Kv |
12 |
43 |
70 |
110 |
170 |
275 |
440 |
690 |
960 |
|
|
Rated Travel L(mm) |
40 |
60 |
100 |
|||||||
|
Actuator Area (cm2) |
300 |
415 |
616 |
1134 |
||||||
|
Inherent Flow Characteristics |
Quick Opening |
|||||||||
|
Nominal Pressure |
PN16、25、40、64、100（150lb、300lb、600lb） |
|||||||||
|
Structure Type |
Upward-Spreading Type, Downward-Spreading Type |
|||||||||
|
Allowable Leakage |
Metal Seal |
Class IV, V |
||||||||
|
Soft Seal |
Class VI, Zero Leakage |
|||||||||
|
Air Supply Pressure Ps(MPa) |
0.4～0.6 |
|||||||||
|
Connection |
Flanged: HG/T20592-2009 RF |
|||||||||
|
Optional Accessories |
Positioner, Air Filter Regulator, Solenoid Valve, Limit Switch, Handwheel (Side Mount, Top Mount) |
|||||||||
