Control Valve Positioners: Function, Types, and Troubleshooting

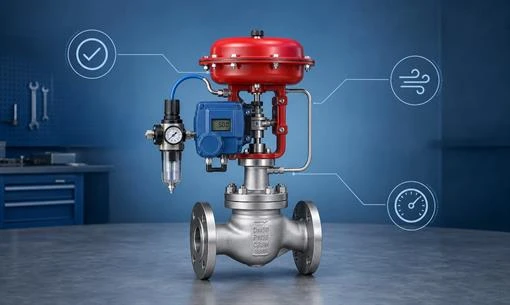

A control valve positioner helps ensure that the valve reaches the position required by the control signal. In modern control valve solutions, the positioner plays an important role in improving accuracy, response, and process stability.

Without a positioner, friction, pressure changes, actuator hysteresis, and process forces may prevent the valve from moving exactly as required. A positioner measures valve position and adjusts actuator output to reduce error.

What Does a Control Valve Positioner Do?

The positioner receives a control signal from the control system and compares it with the actual valve position. If there is a difference, it adjusts the actuator pressure or output until the valve reaches the desired position.

This improves control accuracy, especially in applications with changing pressure, friction, or high actuator load.

Pneumatic Positioners

Pneumatic positioners use air signals to control actuator movement. They are common in traditional process plants and can provide reliable operation when instrument air quality is maintained.

They are often used with pneumatic actuators in hazardous or demanding industrial environments.

Electro-Pneumatic Positioners

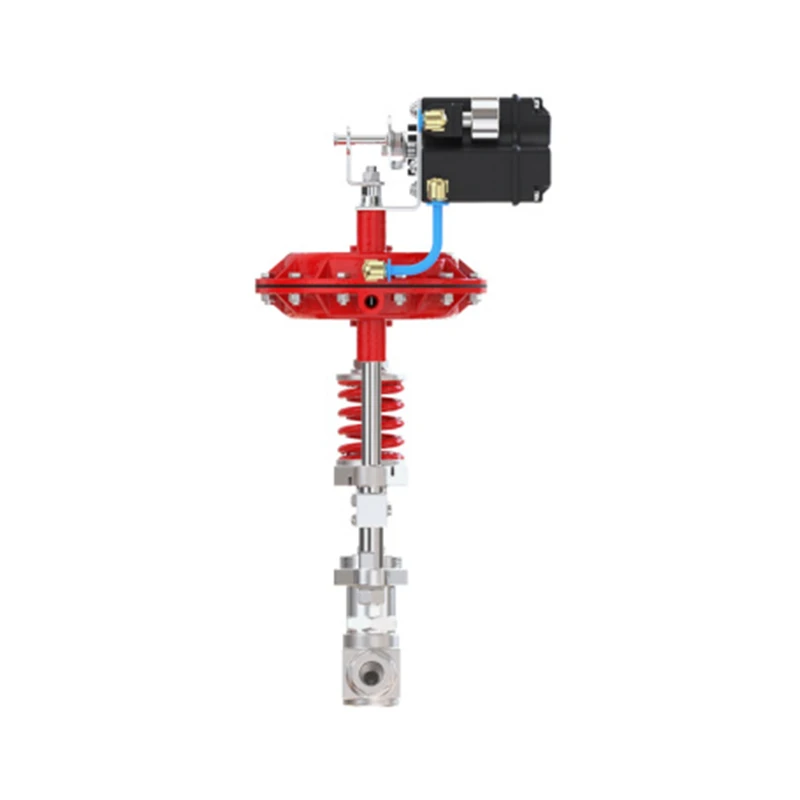

Electro-pneumatic positioners receive electrical input signals and convert them into pneumatic output for the actuator. They are widely used when valves need to connect with modern control systems.

This type of positioner is suitable for many industrial control valve applications requiring accurate and repeatable modulation.

Smart Positioners

Smart positioners include digital communication, diagnostics, calibration features, and performance monitoring. They can help maintenance teams identify valve problems before they cause process downtime.

Smart diagnostics may detect friction, air leakage, actuator problems, calibration issues, or abnormal valve response.

Common Positioner Problems

Typical issues include poor calibration, dirty air supply, loose linkages, incorrect feedback setup, air leaks, electrical signal problems, or mechanical friction in the valve assembly.

If the valve hunts, responds slowly, fails to reach position, or moves erratically, the positioner should be inspected along with the actuator and valve stem.

Troubleshooting Tips

Maintenance teams should verify input signal, air supply pressure, tubing connections, feedback linkage, calibration settings, and actuator movement.

If process forces are too high, a high-pressure flow control application may require a stronger actuator or a more suitable valve design.

Conclusion

Control valve positioners improve accuracy, repeatability, and process stability. Proper selection and maintenance can reduce downtime and improve valve performance.
