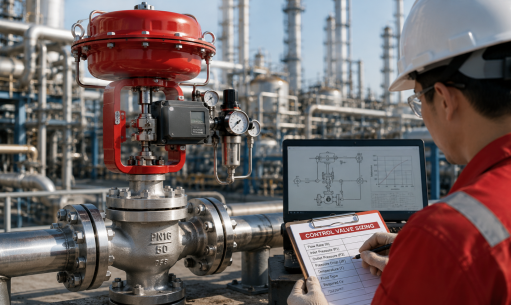

Control Valve Sizing Guide: How to Select the Right Valve Size for Your Process

Control valve sizing is one of the most important steps in industrial valve selection. A control valve does not simply need to match the pipeline diameter. It must match the actual process conditions, including flow rate, pressure drop, media characteristics, temperature, and control requirements.

If a control valve is not sized correctly, the entire process system may suffer from unstable control, excessive noise, vibration, leakage, premature wear, or reduced efficiency. For engineers and procurement teams, understanding the basic principles of control valve sizing can help avoid costly mistakes during project design and equipment selection.

Why Control Valve Sizing Matters

The main function of a control valve is to regulate flow by changing the valve opening according to process signals. To perform this function accurately, the valve must operate within an appropriate opening range under normal working conditions.

If the valve is too large, it may operate only at a very small opening. This can cause poor control accuracy, frequent hunting, seat erosion, and unstable flow regulation. If the valve is too small, it may not provide enough flow capacity, especially during peak operating conditions.

Correct control valve sizing helps improve process stability, extend service life, and reduce maintenance costs. It also allows the actuator, valve body, trim, and accessories to work together more effectively.

Key Parameters Required for Control Valve Sizing

Before selecting a control valve, engineers should collect complete process data. The more accurate the operating data is, the more reliable the valve selection will be.

Flow rate is one of the primary sizing parameters. The required minimum, normal, and maximum flow rates should all be considered. A valve selected only for maximum flow may perform poorly under normal operating conditions.

Inlet pressure and outlet pressure determine the pressure drop across the valve. Pressure drop directly affects valve capacity, noise level, cavitation risk, and control performance.

Operating temperature affects material selection, sealing performance, and actuator configuration. High-temperature steam and low-temperature LNG systems require very different control valve designs.

Media type is also critical. Clean water, steam, gas, corrosive chemicals, slurry, and cryogenic fluids all require different valve structures, materials, and sealing solutions.

For users comparing different industrial valve products, these process parameters should be reviewed before selecting a final valve model.

Understanding Cv Value in Control Valve Selection

Cv is a commonly used flow coefficient that indicates the flow capacity of a valve. In simple terms, a higher Cv value means the valve can pass more flow under the same pressure drop.

However, selecting a control valve only by Cv value is not enough. Engineers must also consider the operating range, valve opening percentage, flow characteristic, cavitation, flashing, noise, and actuator response.

In many industrial applications, a well-sized control valve should operate around the middle of its travel range during normal conditions. This provides enough room for both increasing and decreasing flow when process conditions change.

Common Control Valve Sizing Mistakes

One common mistake is selecting a valve based only on pipe size. A pipeline may be DN100, but the correct control valve may not necessarily be DN100. The valve size should be determined by process conditions and required flow capacity.

Another frequent mistake is oversizing. Oversized valves often appear safe during procurement, but they can create control problems during operation. When a valve operates at a very low opening, small actuator movements may cause large flow changes.

Undersizing can also create serious issues. An undersized valve may remain nearly fully open during normal operation and still fail to deliver the required flow. This reduces control flexibility and may limit process capacity.

Ignoring pressure drop is another important risk. Excessive pressure drop can cause cavitation, flashing, vibration, and noise, especially in liquid applications. These problems may damage internal valve components and shorten service life.

How Pressure-Balanced Control Valves Improve Performance

In applications with high differential pressure, a standard single-seat control valve may require a large actuator force to overcome fluid pressure. This can increase actuator size and reduce control stability.

A pressure-balanced design helps reduce the unbalanced force acting on the plug. This allows the valve to operate more smoothly under higher pressure drop conditions and can improve control response.

For processes requiring stable regulation under challenging pressure conditions, the YSIQ-D-20 Pressure Balanced Single Seat Control Valve is designed to provide reliable flow control while helping reduce operating force and improve stability.

Control Valve Sizing for High-Pressure Applications

High-pressure control applications require additional attention during valve sizing. In these systems, pressure drop, trim design, sealing performance, and material strength all become more critical.

If the valve is not properly sized for high-pressure service, problems such as vibration, erosion, leakage, and poor regulation may occur. Severe service conditions may also require special trim structures to reduce noise and prevent internal damage.

For demanding industrial processes, the YSIQ-D-70 Intelligent High Pressure Control Valve can be considered for applications where pressure resistance, stable control, and long-term reliability are required.

Material and Trim Selection Should Match the Application

Control valve sizing is closely connected with material and trim selection. Even if the valve size is correct, unsuitable materials can lead to corrosion, wear, or sealing failure.

For corrosive chemicals, stainless steel or special alloy materials may be required. For steam or high-temperature media, materials must maintain mechanical strength and sealing reliability. For cryogenic service, low-temperature toughness is especially important.

The valve trim should also match the flow condition. In high-pressure or erosive applications, strengthened trim materials or special anti-cavitation designs may be needed.

When to Ask for Technical Support

Control valve sizing can be complex when the process involves high pressure drop, corrosive media, low temperature, flashing, cavitation, or strict control accuracy. In these cases, engineers should work closely with a qualified control valve manufacturer.

A manufacturer with engineering experience can review process data, recommend suitable valve types, check sizing results, and help confirm materials, trim, actuator, and accessories.

If you are selecting valves for a new project or replacing existing equipment, you can contact YSMETER for technical discussion and product selection support.

Conclusion

Control valve sizing is not only about selecting a valve diameter. It requires a full understanding of flow rate, pressure drop, temperature, media type, Cv value, flow characteristics, actuator performance, and application conditions.

A correctly sized control valve can improve process stability, reduce operating risks, and extend service life. By working with an experienced control valve manufacturer, industrial users can select valve solutions that better match real process requirements and long-term operating goals.
