At an LNG loading arm, a nitrogen line, or a process vessel operating near its minimum design temperature, a valve that works at ambient conditions may not perform the same way after cooldown. This guide is for engineers, buyers, and maintenance teams comparing an electric cryogenic control valve for LNG service or another low-temperature duty. It explains what to confirm before ordering: the cryogenic control valve sizing basis, low-temperature valve material selection, and cold-test evidence. Key terms include LNG control valve, cryogenic valve, and low-temperature service, alongside Cv, an extended bonnet, and IEC 60534-4 leakage classes.

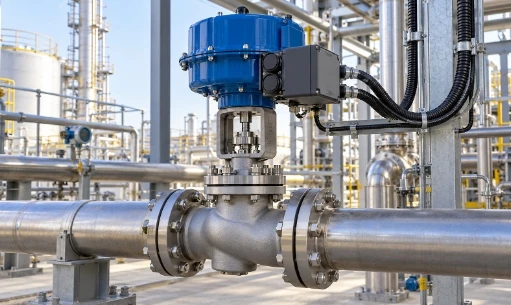

Typical arrangement: The extended bonnet helps keep the stem packing away from the cold process zone. Confirm the dimensions and insulation limits for the selected design.
“Cryogenic” does not identify one universal operating temperature. Specify the minimum and maximum design temperatures, normal operating range, startup and shutdown conditions, and credible upset temperatures. For reference, atmospheric-pressure liquid nitrogen boils at approximately −196°C, while LNG is commonly handled near its boiling range of approximately −162°C; actual process conditions depend on pressure and composition. A valve datasheet should state the design temperature rather than relying on a service label alone.
A control valve modulates flow in response to a control signal. Its trim—the plug, seat, and related flow passages—creates a controllable restriction. The actuator moves the stem, while the positioner may adjust actuator movement to match the commanded position. An electric actuator does not make the entire valve assembly suitable for cryogenic exposure: the pressure boundary, trim, stem, packing, joints, and actuator arrangement must each suit their actual temperatures.
An extended bonnet places the stem packing farther from the cold fluid, helping limit icing and maintain a more suitable packing environment. Extension length is design-specific; it is not a substitute for checking packing temperature, stem travel, insulation, and installation clearance. Thermal contraction can also change clearances and loading, so the manufacturer should identify which components are qualified for the specified cold condition.
Start with the full pressure-temperature envelope, not just nominal line pressure. Record inlet and outlet pressure, differential pressure at each operating case, flow direction, fluid phase, composition, density, vapor pressure, and any expected flashing or two-phase flow. Ask the supplier to confirm the body and bonnet pressure ratings at the minimum design temperature and the applicable rating standard. A pressure class alone does not prove suitability at every temperature. For broader selection context, see YSMETER’s control valve application guide.
Review body, bonnet, bolting, and trim material grades against the project specification and minimum design metal temperature. Material selection depends on pressure, temperature, fluid compatibility, impact-toughness requirements, and governing code. Do not assume that a familiar stainless-steel grade or a generic “cryogenic material” designation is sufficient; request the material certificates and any required impact-test records for the actual supplied heat and component.
Cv is a valve flow coefficient used in sizing. Give the manufacturer minimum, normal, and maximum flow cases with the corresponding pressure conditions and fluid properties. Ask for the sizing method, selected Cv, travel at each case, and predicted noise or cavitation risk where applicable. A valve sized only for maximum flow can have poor control at minimum flow; a valve that is too small may not deliver the required capacity at the available pressure drop. YSMETER’s control valve range includes options that should be reviewed against the project’s actual operating envelope.
Specify the required seat leakage class and test basis. IEC 60534-4 defines control-valve inspection and routine testing provisions, including leakage classifications; the purchase specification should identify the required class and test conditions. Do not treat an ambient-temperature seat test as automatic proof of cold performance. If cold shutoff is critical, state whether cryogenic testing is required and ask for the test medium, test temperature, pressure, duration, acceptance criterion, and recorded result.
Provide the supply voltage and frequency, control signal, required positioning accuracy, ambient temperature, enclosure rating, hazardous-area classification, and any communications protocol. Have the supplier size actuator thrust or torque at the worst specified differential pressure, including seat load and the selected trim. Request the actuator’s operating time and duty rating rather than relying on a generic “fast” or “heavy-duty” description.
Define what the valve must do on loss of power or control signal. A standard electric actuator may stop in place; it does not necessarily provide fail-open or fail-closed action. If a defined fail position is essential, specify the required stored-energy or spring-return arrangement and confirm it is available for the actuator and valve combination. Check limit switches, position feedback, local controls, cable entries, heater requirements, and actuator separation from cold surfaces.
Consider a hypothetical nitrogen service with a stated minimum temperature of −196°C and three operating flow cases. The buyer should not approve a proposal solely because the body material is described as stainless steel or because an actuator has the correct voltage. Instead, compare the supplier’s selected Cv and calculated travel for all three cases, verify the specified minimum design temperature for the supplied materials, and check the required cold-test records and leakage acceptance criteria. Then confirm that the extended bonnet and actuator fit the available installation space and that the defined loss-of-power response matches the control narrative. The numerical results must come from the project’s actual pressure, flow, and fluid data; this example is a review method, not a valve sizing recommendation.
During bid review, compare the proposed valve configuration and test records with the purchase specification—not just the headline material and pressure class.
Cold service makes installation and operating procedures part of valve performance. Review cooldown rate and thermal cycling with the process and valve supplier, especially where rapid temperature changes could create uneven contraction. Follow the manufacturer’s limits for insulation, orientation, support, and stem or actuator access. Plan commissioning checks that verify position feedback, control response, leakage criteria, and safe isolation before the line enters service. For LNG-specific context, see YSMETER’s LNG industry valve solutions.
For emissions-sensitive duties, state the required packing performance and any fugitive-emission qualification standard in the specification. A packing system’s published test result applies to its tested configuration and conditions; confirm that the proposed stem, extension, temperature range, and maintenance arrangement are covered. Also agree on spare trim and packing identification so replacements preserve the qualified material and geometry.
When comparing quotations, separate confirmed data from assumptions. A technically useful offer identifies the valve model and trim, Cv, materials, design limits, actuator sizing basis, test scope, and exceptions. If a supplier leaves one of these items open, record it as a technical clarification before commercial award. This is more reliable than comparing price and nominal size alone.
Choose a supplier that can review the process cases, explain the sizing basis, document material compliance, and provide test records for the agreed configuration. YSMETER can be contacted to discuss valve selection, electric actuator requirements, drawings, and inspection documentation for a project-specific datasheet. Share the operating envelope and applicable specifications at the inquiry stage so the proposed assembly can be evaluated against the actual duty.
Before purchase, reconfirm the electric cryogenic control valve for LNG service requirements, the cryogenic control valve sizing calculations, and low-temperature valve material selection. Check the LNG control valve and wider cryogenic valve configuration for low-temperature service, including Cv, the extended bonnet, and the specified IEC 60534-4 leakage basis. Clear data, a defined cold-test scope, and an actuator sized for the real pressure cases give the project team a defensible basis for selection; contact YSMETER with the service datasheet to review a suitable configuration.
